Monday, August 28, 2017

Sintron iPhone LCD & Screen - before & after installation

if you are new beginner for replacing iPhone LCD & Screen .and you purchased Sintron "pure" iPhone LCD Screen .(which means it doesn't include the front camera ,flex cable .metal case etc...Sintron also has "complete" version ) .there are times we have been asked why the product is not the same as your iPhone Screen .then answer is in fact quite easy .you haven't transferred the parts from your old ( damaged ) screen to Sintron New Screen yet .below would be the list for all models (including 5 ,5c ,5s ,SE ,6 ,6 plus ,6s ,6s plus ,7 ,7 plus ) - before & after installation .

more info :iPhone screen installation guide


Model : 5
before :




5 after : front


5 after : back




Model : 5c
before :


5c after : front


5c after : back


Model : 5s & SE ( the same appearance )

before :


5s & SE after : front


5s & SE after : back




Model : 6 & 6 plus ( just the screen size is different )
before :


6 & 6 plus after : front


6 & 6 plus after : back




Model : 6s & 6s plus ( just the screen size is different )
before :


6s & 6s plus after : front


6s & 6s plus after : back




Model : 7
update soon



Share:

Thursday, August 24, 2017

iPhone LCD & Screen replacement installation problem - case 3 LCD got Cracked.

For iPhone LCD & Screen replacement ,Even you are professional shop for customers .sometimes it's possible to meet cracked inside situation .you can see below pictures.

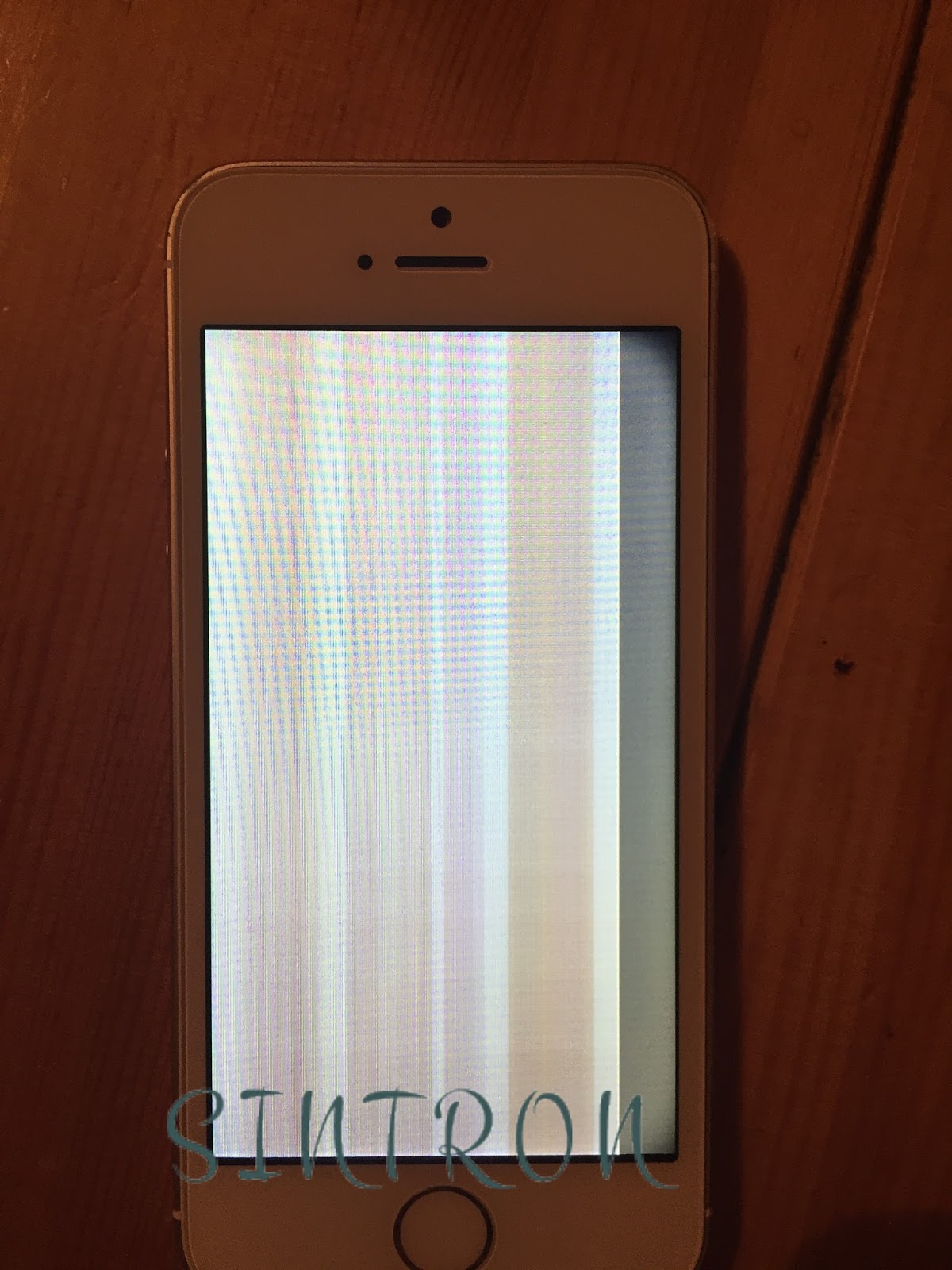

the common situation for cracked LCD inside is you can always find "BLACK BAR OR AREA".

iphone cracked LCD

This situation happens the most from the logistics problem .logistic company / post office might not care enough for the parcel .so there's some external force applied during the delivery process.
( if in this case .please contact Sintron for support and get a new one )

however .there are also some cases are that new beginner uses the wrong screws an then penetrate the LCD .so got it cracked.

if you know how to tear off the layer of back light .


you can see the cracked area as picture below .

if this happens before the "final installation" .it's possible damaged during delivery .please kindly contact us .we will solve this soon for you .

Share:

Wednesday, August 23, 2017

iPhone LCD & Screen replacement installation error - case 2 Touch Screen not working

for LCD touch screen problem ,sometimes it is also possible the plug is not connected correctly (misalignment) ,this would cause the touch screen to be not sensitive ,not working at all .or even generate heats to iPhone itself.

please check below video for the situation:

if this happens ,try this trick to see if it works :

"When reconnecting the digitizer cable, do not press the center of the connector. Press one end of the connector, then press the opposite end. Pressing in the center of the connector can bend the
component and cause digitizer damage."

because most of time . you don't even know that there's misalignment .

find below link for more info :



iPhone screen replacement -- case 5 connecting & removing connector error





Share:

Tuesday, August 22, 2017

iPhone LCD & Screen replacement installation error - case 1 Bright Spot

When replacing iPhone LCD & Screen ,if you see an area that is brighter than other area .and this area just happens to be nearby the earpiece , camera ,or sensors with screws .most of time you would think ,I got a faulty one from Sintron iPhone Screen .Well...please hold on a second....

the reason is also possible that when you reinstall the earpiece , camera or screws .you didn't put them back correctly (or wrong screws problem ).so there's something behind that area is Pushing the Backlight of the Screen .then the situation would be similar to the picture shown below.


iPhone 6 Screen replacement



in this case ,please try to remove the possible parts such as earpiece ,camera ,home button etc...and test again to see if it works now.








Share:

Sunday, August 20, 2017

Common mistakes while replacing iPhone screen -- case 5 connecting & removing connector error

after successfully open the iPhone .you might be so excited .and be less careful while removing the plug .the wrong way to removing and connecting the plug & connector would easily got the screen damaged .or furthermore ,got logic board connector damaged ! if logic board connector got damaged ,even you have new screen .you already can do nothing with your iPhone .

when removing the connector ,do not use "hand" to pull them ! instead ,Use the flat end of a spudger, or a fingernail, to disconnect the digitizer cable by prying it straight up from its socket on the logic board.



and most importantly .When reconnecting the cabledo not press the center of the connector. if the position is correct ,you don't need too much force .Press one end of the connector, then press the opposite end. Pressing in the center of the connector can bend the
component and cause damage.



Share:

Saturday, August 19, 2017

Common mistakes while replacing iPhone screen-- case 4 forgot to remove battery connector

Sometimes this is just a forgetful thing, sometimes it's laziness, often it seems to be that the repair person isn't even aware it's supposed to be removed.

although usually while replacing the LCD & Screen .iPhone is already turned off .but it is still with power if you don't disconnect the battery plug .so if unfortunately some short circuit occurs during the process ,such as misalignment for plugs etc....it's possible to burn the LCD & Screen ,or even the logic board.

it's always a good habit to remove the battery plug to prevent unexpected damage for your iPhone .



Share:

Sintron iPhone LCD & Screen replacement guide



below are PDF files for your replacement .please check below to download.
----
we also list the most common mistakes !! so please must read it !wrong process would be very easy to damage the screen as well your iphone !!

iPhone 5 Screen replacement -- online PDF file
iPhone 5C Screen replacement -- online PDF file
iPhone 5S Screen replacement -- online PDF file
iPhone SE Screen replacement -- online PDF file

iPhone 8 & 8 Plus Screen replacement -- online PDF file --update soon


if you are professional, and notice there's some error in the instruction. please report to us and help us to improve the instruction. we & all other DIYers will appreciate it a lot!
----
Thanks again!
Sincerely,
Sintron Technology


Share:

Wednesday, August 16, 2017

Common mistakes while replacing iPhone screen-- case 3 wrong screws size

after you disassemble your iphone screen .if the screws are stored and look like as below picture.then you will be in trouble!



there's a lot of different screws size in iPhone ,they might be differing for only 0.1mm.

for our common sense ,interchange some screws should have no harm .but that's wrong !

Using the wrong screw in the reassembly can result in permanently damaged parts, including destroying the main circuit board, other times they become a nightmare for the unfortunate technician who has to service the phone the next time.

it's also possible to penetrate the back of Screen directly with physical damaged you can observe right away. so please must keep track of "every screw" !

below might be a good idea to help you keep tracking of them. where each screw goes you can draw a rough diagram of the phone on a sheet of paper and stick the screws down in their approximate locations with tape.



Share:

Monday, August 14, 2017

Common mistakes while replacing iPhone screen-- case 2 Forgot to transfer front proximity sensor / camera ring

Usually new beginners don't even know what they are and forgot to transfer them to new screen. Bonded to the original display units is a small clear plastic guide for the face camera, it stops it moving around by keeping it properly aligned relative to the hole in the screen.
When the plastic ring isn't transferred with the new display it can result in the camera showing strange blurred edges or pointing in the wrong direction or proximity sensor not working ( while you listen to phone . the screen won't light off )


Share:

Common mistakes while replacing iPhone screen-- case 1 Forgot to peel off the plastic

Sometimes this is just a forgetful thing, sometimes it's laziness, often it seems to be that the repair person isn't even aware it's supposed to be removed.

Leaving the plastic on isn't so bad if the little tag is cut off, sometimes it's done to gap the display away from the chassis slightly. Unfortunately if the little tag is left attached it causes a pinch and crush problem to the edge of the delicate LCD display and frequently permanently damages it.



Share:

Wednesday, August 9, 2017

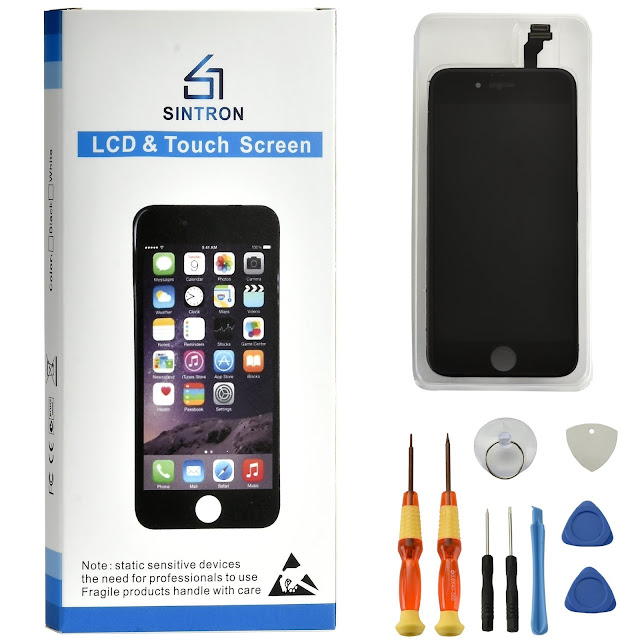

Sintron iPhone LCD & Screen photos











Share:
